Z747 Lever Rose Door Handle

From £8.99
Rating:
100% of 100
From £8.99
Minus Plus
Add to Wish List

View More Door Handles

  • Classy, stylish and great quality!
  • Smart minimalistic straight lever rose door handle.
  • All metal construction.
  • Supplied as a pair with bolt through fixings, screws, spindle and allen key.
  • Grub screw underneath the lever ensures a strong fit to your door.
  • 50mm threaded rose (not push on).
  • Sprung levers for a quality feel.

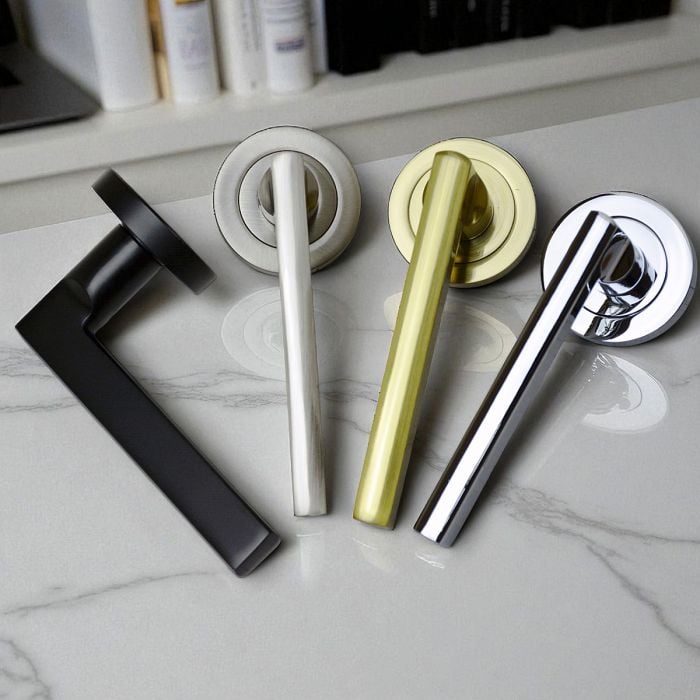

  • Available in 4 modern finishes including matt black, satin nickel and polished chrome.
  • See our special offers tab on this page for 50% off the tubular latches.
  • See our Related Products tab on this page for matching thumbturns and lock covers.

These door handles are sprung so extra assistance is given to the levers returning to their natural resting position. The Z747 lever rose door handles are supplied with self tapping screws for each side of the door handle, and two sleeve bolts that pass through the door and the latch for a more solid fixing.

Cleaning your door handles does not require anything special although please avoid any chemical cleaners and use only a semi dry cloth with a mild soapy solution for best results.

How To Fit The Z747 Lever Door Handles

Fixing the Z747 door handles requires a reasonable amount of diy skill.

You will be supplied with a couple of sleeve bolts and some self tapping screws. The sleeve bolts are generally for hollow doors and can fit through the holes in your latch, provided your latch has these. It is advisable to use them anyway in a different position if your latch does not have the clearance needed. These sleeve bolts will cope with your standard door thickness easily as they are adjustable.

A couple of pointers before you get started.

Caution: The rose is threaded and as this is a fine thread be careful to ensure you unlock them the correct way, as they can tighten into a lock position making it difficult to unscrew. Fine threads can lock up easily. It is also easy to cross-thread so ensure you get the right feel to re-locate the thread when you have released the rose completely. To unscrew the threaded rose always unscrew in an anti-clockwise direction viewed from the front of the handle (as if on the door). A firm grip and jolt will be needed to release them if you do turn the rose in the wrong direction. If they end up cross-threaded this could mean replacing your handles again.

You will need a 2mm drill. This is needed for the screws to stop them binding or even breaking. Always run a screw into the wood gently to start with until you get the required torque to sufficiently tighten down. Some woods like hardwood will need you to run the drill several times and to use a slightly larger 2.5mm drill bit. In some cases a little bit of candle wax around the screw thread will also help avoid screws jamming and breaking. Caution: Do not screw directly into the door without first drilling these pilot holes.

The design of these levers is such that the rose collars can be released over the lever itself. This makes things a little more easier when driving the fixing screws into place.

Fixing the Z747 to the Door

Place the levers onto the door with the spindle and allow the levers to fall loosely to their true line before then marking the fixing positions for the screws and bolts. Check from the side of the door that the levers look to be inline and are not sloping or at an angle. Caution: Fixing interior door handles that are out of line can tighten the lever action causing them to stick when fitted.

If the holes are not already in the door for the sleeve bolts you will need to drill these through (check the latch has provision for the bolts to pass through before drilling if you are using the inline position). This just needs to be a clearance hole sufficient for the bolts to pass though. You can then screw clamp the two levers to the door with the sleeve bolts first and then use the self-tapping screws to get a more solid fixing. With the sleeve bolts in place this will be easier to do. When using screwdrivers please ensure a suitable Philips type head is used as the screw heads are smaller to allow them to sit down in the countersunk positions in the rose itself.

Refit the rose covers over the levers and tighten in a clockwise direction. Caution: To avoid cross threading the rose covers always start carefully and release in a back and forth direction until you pick up the thread, and the rose will then easily tighten to its closed position. The rose does not need to be tightened too hard as it is unlikely to loosen but if it does it is simple to tighten back again. Remember to unlock the rose thread by turning in an anti-clockwise direction.

Once you are happy that everything looks correct and the levers are returning on their springs correctly all you need to do is tighten the grub screws under each lever for a real solid fixing that will last for years to come.
