View Diagram

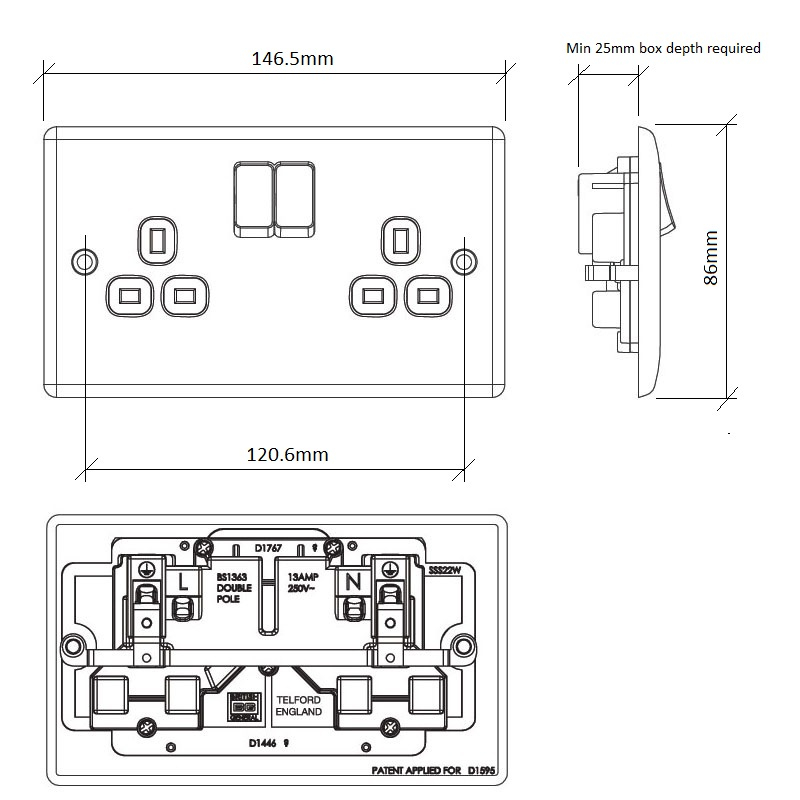

Diagram Image for PS02 Screw Plate 2 Gang Plug Switch

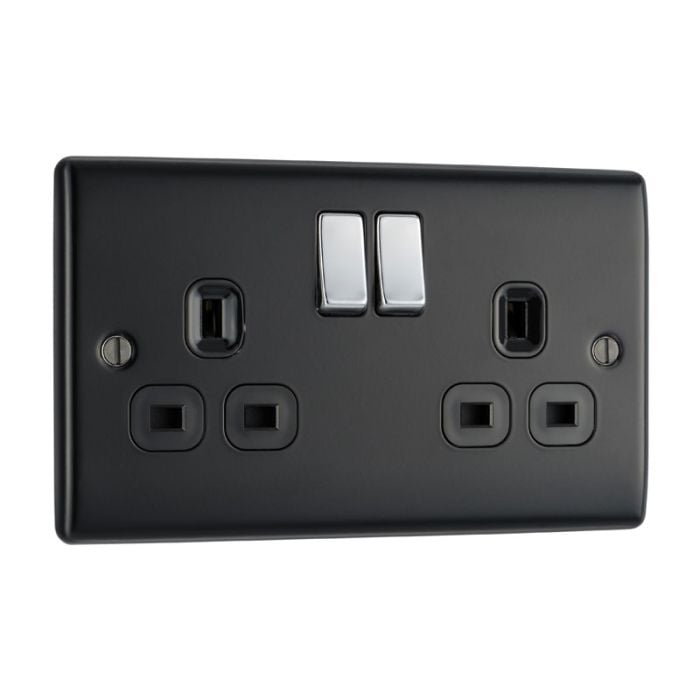

PS02 Screw Plate 2 Gang Plug Switch

From £4.60
From £4.60
Minus Plus
Add to Wish List

More Plug Sockets

  • Popular double plug socket (2 gang).
  • Stylish curved edge plate made from metal (moulded plastic for white).
  • Integrated gasket protects metal edge from water ingress (not on white).
  • High quality British General plug socket.
  • BS 1363 Part 2
  • 13 Amp 250V rated.
  • 2 earth terminals.
  • Colour coded terminals.
  • Captive screws for easier installation (120mm centres screw position).
  • Available in 5 beautiful modern finishes.
  • Requires a minimum mounting box depth of 25mm.

If in doubt please consult a competent electrician.


Technical Specifications - PS02 Screw Plate 2 Gang Plug Socket

How to change a 2 gang plug socket (opens in new window)

If in doubt please consult a competent electrician.

Standard(s) BS 1363 Part 2
Rating 13 Amp 250V~
Switch type Double pole
Contact Gap 3.0mm minimum
Terminal Capacity 3 x 2.5mm² 3 x 4mm² 2 x 6.0mm²
RoHS Directive No
WEEE Directive No
Mounting Box Depth(Min) 25mm
Fixing Centres 120.6mm
Size 146.5mm x 86mm x 31mm
