Diagram Image for LS09 Screw Plate 1 Gang Dimmer Switch

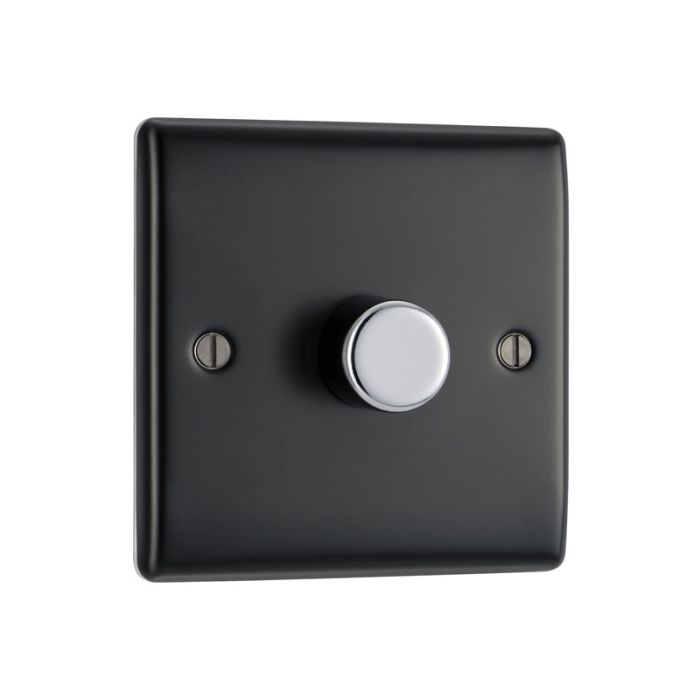

LS09 Screw Plate 1 Gang Dimmer Switch

From £13.68
From £13.68
Minus Plus
Add to Wish List

More Light Switches

  • Popular single dimmer light switch (1 gang).
  • Stylish curved edge plate made from metal.
  • High quality British General dimmer switch.
  • BS EN 60669-2-1
  • 60 - 400 Watts rated
  • Integrated gasket protects metal edge from water ingress.
  • Captive screws for easier installation (60mm centres screw position).
  • Available in 5 beautiful modern finishes.
  • Requires a minimum mounting box depth of 25mm.

If in doubt please consult a competent electrician.



Technical Specifications - LS09 Screw Plate 1 Gang Dimmer Switch

How to change a dimmer switch (opens in new window)

If in doubt please consult a competent electrician.



Standard(s) BS EN 60669-2-1
Rating 60 - 400W
Switch type Push on - Push off - Rotary to adjust level
Terminal Capacity 3 x 1mm² 2 x 1.5mm² 1 x 2.5mm²
RoHS Directive No
WEEE Directive No
Mounting Box Depth(Min) 25mm
Fixing Centres 60.3mm
Size 86mm x 86mm x 21.2mm
