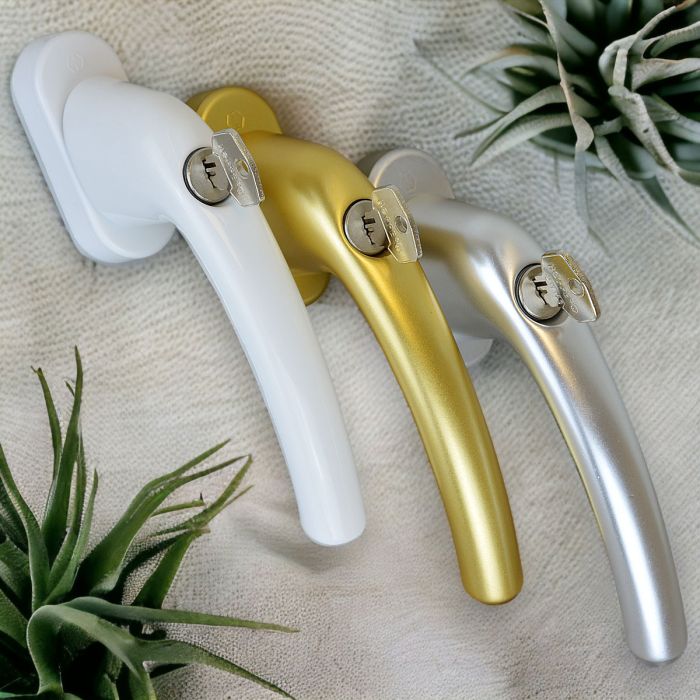

W22 Tokyo Tilt Turn Window Handle

From £18.64
From £18.64
Minus Plus
Add to Wish List
  • Handles can only be used on Tilt before Turn Windows (windows open inwards).
  • Concealed fixing swivel cover (lift and turn).
  • See our quick Guide and FAQ's on Tilt and Turn Window Handles.
  • Inbuilt safety lock for inward opening.
  • Supplied with integral 7mm spindle and one key.
  • Extra keys available (ref:2W153).
  • Spindle: 7mm square.
  • Spindle lengths available: 32mm, 38mm, 44mm.
  • Fixing Centres of two screws: 43mm


Locking Tilt Before Turn(TBT) handle will engage in four positions at 90 degree intervals. In the locked position the handle can be turned to allow the window to tilt for ventilation but the open inwards turn position is locked for safety reasons. The turn position can only be accessed by unlocking the cylinder with the key. If the handle is rotated 180 degress (two clicks) prior to fitting the handle it is possible to use the handle in a turn and tilt mode and to then lock the handle in its closed position.

Royal Mail Update:

Please note that Royal Mail will be striking on Wednesday 30th November and Thursday 1st December. Orders placed using Royal Mail services from 2pm Monday 28th November until 2pm on Thursday 1st December will be affected. Please read the changes below and note that an alternative carrier will be available during this period and can be selected in the cart.

*Strike action upgraded to 24hr is in operation i.e. all 2-4 day service Royal Mail parcels will be upgraded to a 24 hour RM service during the period above. This does not mean the parcel will be delivered within 24 hours but will ensure it takes priority.

**All orders over £100 will be FREE carriage using the DPD Next Working Day service during strike action days.

We apologise for the inconvenience. Further details will follow nearer the time. For more details please visit the Royal Mail Help Page.

Please note last dispatch for the day (Mon-Fri) is 2pm, so your order forwards on to the next day for dispatch if your order is placed after this time. Orders placed after 2pm on Friday are dispatched on the Monday.

Channel Islands: VAT is removed on the final steps through the basket and is not charged to CI postcodes.

European Deliveries are currently suspended.

The following special offer is available to you when you buy the W22. The discount for the special offer will show in the cart if both the W22 and the special offer product are added.
