View Diagram
Diagram Image for LS04 Screw Plate 4 Gang Light Switch

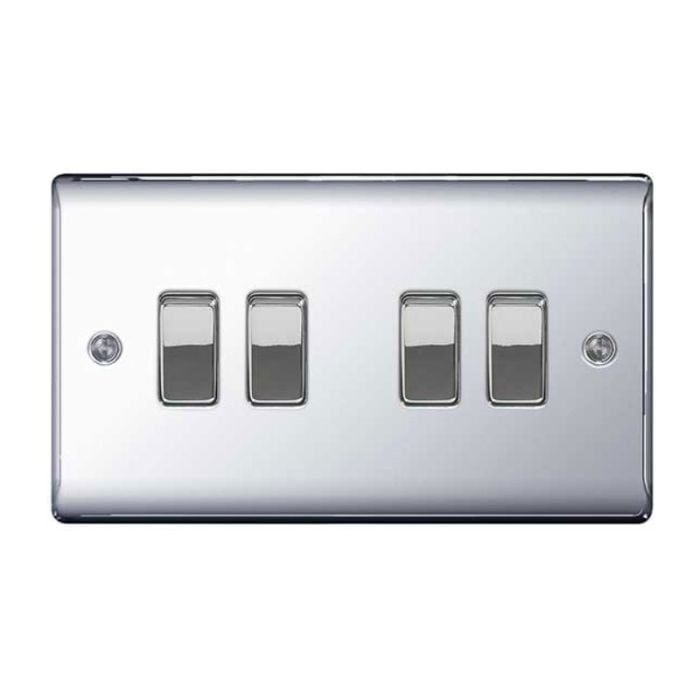

LS04 Screw Plate 4 Gang Light Switch

From £6.85
From £6.85
Minus Plus
Add to Wish List

More Light Switches

  • Popular quadruple light switch (4 gang).
  • Stylish curved edge plate made from metal (moulded plastic for white).
  • High quality British General light switch.
  • BS EN 60669-1
  • 10 Amp 10 AX inductive rated, 250 Volts rated
  • Integrated gasket protects metal edge from water ingress (not on white).
  • Captive screws for easier installation (120mm centres screw position).
  • Available in 3 beautiful modern finishes.
  • Requires a minimum mounting box depth of 25mm.

If in doubt please consult a competent electrician.

Technical Specifications - LS04 Screw Plate 4 Gang Light Switch

If in doubt please consult a competent electrician.

Standard(s) BS EN 60669-1
Rating 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads)
Contact Gap 3.0mm minimum
Terminal Capacity 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
RoHS Directive No
WEEE Directive No
Mounting Box Depth(Min) 25mm
Fixing Centres 120.6mm
Size 146.5mm x 86mm x 21.2mm
